"Audio Tone Generator for iPad" is a high quality Audio Signal Generator app for iPad.

It creates the Audio Reference Signals as Sine waves, Frequency Sweep, White Noise and Pink Noise, and has a high precision of DVD quality and a frequency accuracy of 0.1Hz.

It will help you to make the benchmark for your audio equipment and loudspeakers, your listening environment and room acoustics or your hearing.

The signals created by this app can be best used in conjunction with external devices, such as an audio spectrum analyzer or a sound level meter.

In addition, it can generate Octave band noise in 1/1 or 1/3 octave band. Octave band noise can be used for various purposes as a reference sound source for environmental sound measurement, sound tuning, auditory effects like tinnitus relief and sound masking.


atgtab_sine

atgtab_sweep

atgtab_pink_init

Products Information

Version: 4.1
Release date: May 16, 2018 UTC.
Size: 0.8 MB
Category: Utilities, Music
Compatibility: Compatible with iPad. Requires iOS 11.3 or later. Not compatible with iPadOS 14 or later.
Status: Unsubscribe

Sound source generation

This app can generate the following signals.

Sinewave
Sweep Sinewave
White Noise
Pink Noise(1/f noise)
Octave Band Noise (1/1 octave band, 1/3 octave band)

Features

Sine-wave signal generation on SINE mode : Predefined frequencies - 63Hz, 125Hz, 250Hz, 500Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz, 16000Hz
Frequency Sweep on SWEEP mode : Predefined frequencies - 20Hz-20000Hz, 200Hz-4000Hz, 1000Hz-8000Hz, 220-880Hz(A3 - A5)
Sweep Time Control : 10 seconds to 180 seconds.
Pause function on SWEEP mode.
Noise generation on NOISE mode : White Noise or Pink Noise.
- Frequency response : 20Hz - 22000Hz / -3dB
Octave band noise generation on NOISE mode : 1/1 or 1/3 octave band.
Burst signal generation on NOISE mode : None, 1, 2, 5 10 sec.
Supports of frequencies range between 20Hz to less than 23999.9Hz.
Frequency Accuracy : 0.1Hz
Direct frequency input by the keyboard.
Output Channel Selection : L, R, L&R
Phase Inversion : In phase / Out of phase
Output Gain Control.
DVD Quality Output.
Optimized for iPhone, Compact code size.

Applications

This app can be very useful for a variety of applications including:

Testing for Loudspeakers and Headphones
Burn-in for Audio equipment and Loudspeakers
Testing and tuning for Audio amplifiers, Equalizers and many other Audio equipment.
Acoustics testing
Frequency response measurement for Audio systems using White noise and Pink noise
Sound Masking
Relaxation and Meditation
Hearing Test
Mosquito sound creation for teenagers

Top Menu

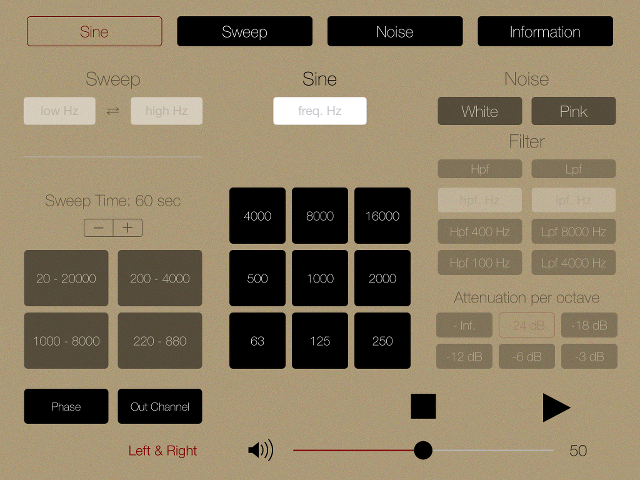

At the time of starting the app "Audio Tone Generator for iPad", Top View will be displayed.

Top View has Mode selection area at the top, Operation panel area in the middle and Control area at the bottom.


atgtab_topview

First, in the mode selection area, select one of four operation modes: sine wave (Sine), Frequency sweep (Sweep), noise (Noise), app information (Information).

In Operation panel area, the selected Operation panel is moved to the center position and displayed, and each parameter settings becomes possible.

In Control area, there are Play, Stop, Sound volume, Output channel selection (LEFT & RIGHT, LEFT, RIGHT) and Phase inversion.

How to use - Sinewave Mode

In the time of starting this app, you can see the operation setting area at the top, and the control area at the bottom.

In the control area, you can select one operating mode from Sine-wave mode(SINE), Sinewave sweep mode (SWEEP) and noise mode(NOISE). In addition, you will be able to control the playback volume, Play/Stop and Output channel.

In the operation setting area, you can see the parameter of the operating mode that has been selected in the control area.


atgtab_sine_play

atgtab_sine_kb

Sweep Mode

This mode is used to generate Sinewave signal.

If you touch the frequency display monitor, it is possible to use the keyboard. In keyboard input, you should set a frequency of 23999.9Hz from 20.0Hz. It should note that the initial value is not entered at the application startup, you will need to be set the frequency of up to one decimal place.

Further, the signal can be set from frequency of the eight types by tapping a preset button. It generates a tone signal by PLAY button, and stops by STOP button.


atgtab_sinesweep_fw

atgtab_sinesweep_rw

atgtab_sweep_kb

Noise Mode

This mode is used to generate White and Pink noise. You can select one of either Pink or White noise. It generates a signal by PLAY button and stops by STOP button.

White noise
The amplitude of white noise is constant throughout the audible frequency range.
Twice the power corresponds to 3 decibel increase, so white noise is said to increase 3 dB per octave in power.
Pink noise
Pink noise is filtered to give equal power per octave or equal power per 1/3 octave.
The power of pink noise per Hz of bandwidth decreases by 3 decibels per octave. When pink noise is chosen for equalizing auditoriums, the real-time analyzer can be set up so that they display a straight horizontal line when they receive pink noise.

ss_noise_pink ss_noise_white

In addition, it is possible to generate the burst signal by selecting one of 1, 2, 5, and 10 seconds with "Burst time". The duty of the burst signal is 50%.

Octave Band Noise

In NOISE mode, Octave band noise can be generated. It can also be used for detailed analysis of specific frequency band.

Octave band noise is generated a frequency limited band signal by using the band-pass filtering of 1/1 octave band or 1/3 octave band. It can be used in order to measure and evaluate the sound level of a certain frequency band on the basis of the octave.

This app can output a noise signal that are processing the source signal of White noise or Pink noise with the octave band pass filter.

By tapping "OCT band" button, octave band noise generation function becomes effective.

In addition, by tapping either "1/1 OCT" or "1/3 OCT" buttons and select one center frequency of the band pass filter. At this time, the center frequency of the selectable bandpass filter is as follows.

Center frequency of 1/1 octave band bandpass filter : 63, 125, 250, 500,1000, 2000, 4000, 8000 Hz
Center frequency of 1/3 octave band bandpass filter : 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500,630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000 Hz

atg_pink_oct atg_pink_oct_2

Information view

By tapping "Info." button, it is displayed the product information. If you tap the "Support/Information", Safari starts and you can see our support page. If you return the operation, please tap the other Mode button.

Release Note

Audio Tone Generator for iPad version 4.1 was released on May 15, 2018.

* Changed Noise filtering to Octave band noise generator, UI design change, iOS 11.3 support, performance improvement.

Audio Tone Generator for iPad version 4.0 was released on December 4, 2016.

* Added filter frequency setting function, UI design change, iOS 10.1 support, performance improvement.

Audio Tone Generator for iPad version 3.1 was released on March 9, 2016.

* Correspond to iOS9.

Audio Tone Generator for iPad version 3.0 was released on October 19, 2015.

* Selection of the output channel. Phase Inversion in STEREO output. Add Filter Processing to NOISE mode. Correspond to iOS9.

Audio Tone Generator for iPad version 2.1 was released on July 9, 2015.

* Bug fixed.

Audio Tone Generator for iPad version 2.0 was released on May 7, 2015.

* Addition of Preset frequencies. Changed UI design. Code Optimization. Correspond to iOS8.

Audio Tone Generator for iPad version 1.3 was released on April 28, 2014.

* Addition of Warble tone generation. Changed UI design and App name. Correspond to iOS7.1.

AudioTGtab version 1.2 was released on November 26, 2013.

* Minor bug fixed.

AudioTGtab version 1.1 was released on October 18, 2013.

* Supports for iOS7, performance improvement

* Redesign of UI, Add of sweep time setting function

AudioTGtab version 1.0.0 was released on June 14, 2013.

Note

This app is not compatible with iPadOS 14 or later. Please be careful when updating the OS.
Please be careful that continuous high-volume and high-frequency signals can damage speakers, even if your ears don't perceive them as being too loud.
On the keyboard-input of frequency, please press the return key after entering a numeric value. Also, in Sweep mode, please press the return key after entering two numeric values continuously.
Wireless connection with Bluetooth equipment is not supported.
AirPlay data transmission is a wireless communication system using Apple's proprietary audio data compression. For this, there are cases where the random sound noise is generated by radio condition and the compatibility of AirPlay connection equipments. Note that it may occur at particularly high frequency band.
