Vibroscope - Vibration Level Measurement and Analysis Tools

icon_vibroscope icon_vibroscopelite

"Vibroscope" is a vibration level measurement and analysis tools by using the iPhone's acceleration sensor in real-time. It allows you to monitor by visualizing the low-frequency vibration, such as inaudible by ear.

"Vibroscope Lite" is a free application that simplifies the measurement analysis function of "Vibroscope", and supports vibration level measurement function of MAIN mode.

This app can be intuitively detected an acceleration amount, that displays the two-axial coordinates in the horizontal direction and the time-axis waveform in the vertical direction. It can measure by determining the horizontal or vertical direction to suit the attitude of the iPhone automatically, so as to be available on the floor and desk or handheld.

In addition, "Vibroscope" is also equipped with the ability to analyze the frequency components of the low-frequency vibration by the FFT analyzer.

Also, the "GAL" unit of earthquake acceleration can be converted by multiplying the 100 in this app's measurement display value.

In the latest version of "Vibroscope", it has added the function to swap the axis direction on the graph display during operation. You will be able to observe from the perspective you wish to see.



ss_vibroscope ss_vibroscopelite

In addition, if a detailed sound level analysis is required, it is recommended that you use our iPhone sound level measuring and analysis app "Sound Level Analyzer".


Please to click the following link to download "Vibroscope" from App StoreTM. It will be open the download page on App StoreTM.


It will move to another site, download from Apple Store


Please to click the following link to Free download "Vibroscope Lite" from App StoreTM. It will be open the download page on App StoreTM.


It will move to another site, download from Aplle Store


Communications charges when connecting to the App Store will be borne by the customer.
iPhone, AirPlay is a trademark of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Products Information

# Product name : Vibroscope

Version : 4.3
Release date : April 16, 2021. UTC
Size : 0.5 MB
Recommendation : iPhone, Requires iOS 12.5 or later.
Category : Utilities, Life style

# Product name : Vibroscope Lite

Version : 4.2
Release date : March 22, 2021. UTC
Size : 3.3 MB
Recommendation : iPhone. Requires iOS 12.5 or later.
Category : Utilities, Life style

Features

# Common functionality

Measurement of vibrations (Main) : acceleration values [m/s2]
Real-time display : the horizontal direction - the two-axial vector plane graph, the vertical direction - the time-axis waveform.
3-axis composite acceleration display (Compo): Compo.[m/s2] (orange-line on the time-axis waveform).
Peak level display. (Peak)
Display of the peak acceleration level along X, Y, Z, 3-axis composition.
Switching of the sensor sampling period : Fast, Slow.
Timer measurement : Timer settings. "Vibroscope Lite" is fixed on 20 sec.
Start delay timer : Timer settings. "Vibroscope Lite" is fixed on 3 sec.

# Proprietary functionality of "Vibroscope"

Optimized for iPhone, Compact code size.
Axis direction (Axis) : Swapping the axis direction on the graph display during operation.
Logarithmic scale graph display (LogScl)
Time setting of Measurement timer duration : 10 sec - 1 hour.
Time setting of Start delay timer : 0 - 20 sec
FFT analysis for 3-axis directional and composite acceleration (Freq.)
Peak Frequency display function on FFT mode.
Reference level setting in FFT mode : 1e-6m/s/s, or 1e-5m/s/s.
Snapshot of the measurement screen : Capture the measurement results and Time-stamp to "Photos"
Logging Function: X-axis, Y-axis, Z-axis, saved in a text file (UTF8) . It saves the measurement data, Time-stamp to LOG file. It can be exported by using "iTunes File Sharing".

# Proprietary functionality of "Vibroscope Lite"

Peak level display. (peak) : includes maximum acceleration values in Gal units.

Applications

"Vibroscope" can be used in applications such as the following utilization examples:

In cases such as car traffic, to analyze the vibration and frequency components on the floor and walls.
To measure the howling level such as Audio equipment.
To detect the vibration and acceleration of train or automobile.
Check the sense of balance by the sensing of the horizontal direction of the body swinging.

Operational Mode

"Vibroscope" has two operational modes, MAIN and FREQ. By tapping each button, its operation mode is selected and executed.

"Vibroscope Lite" has only vibration level measurement function in Main mode.


MAIN : Vibration level measurement mode (default) ; "Vibroscope Lite" installed function
FREQ : FFT analyzer mode

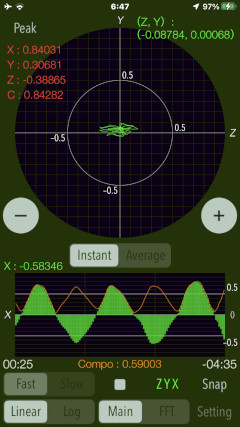

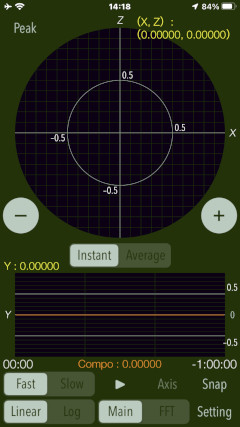

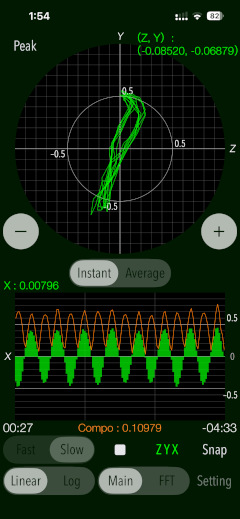

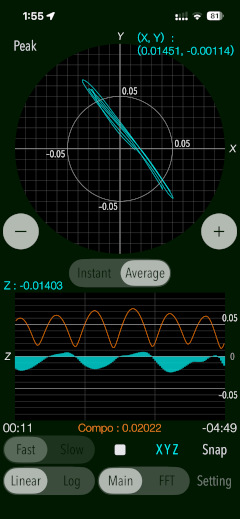

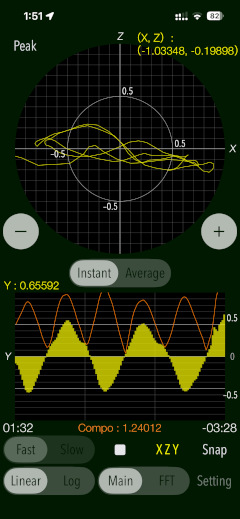

MAIN mode : Vibration Level Measurement

This mode makes the vibration measurement in general.

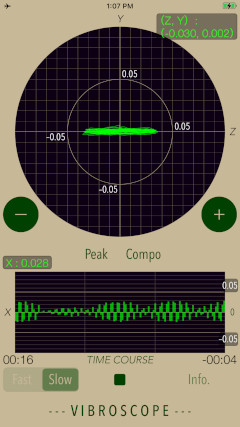

vs_top vslite_top


By tapping Start button to start the vibration level measurement, and it then stop by tapping Stop button.

The display speed will be changed in the display speed button (FAST, SLOW). Measurement display will be able to shift the display range by up-down button ( [+] or [-] ).

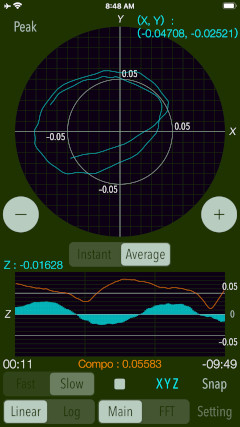

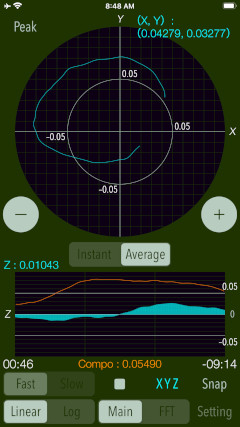

Vibration level measurement displays the effective acceleration value and its maximum value (Peak value).

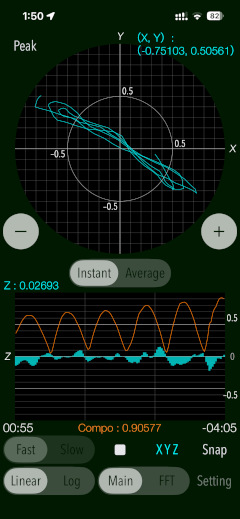

It can be intuitively detected an acceleration amount, that displays the two-axial coordinates in the horizontal direction and the time-axis waveform in the vertical direction. By tapping "peak" button, you can control whether to display numerical value.

It can be measured by determining the horizontal or vertical direction to suit the attitude of the iPhone. In the two-axis graph display, either the x-y-axis or x-z-axis or y-z-axis by the attitude of the terminal will be displayed. (For this automatic screen display, you need to unlock "Portrait orientation lock" in the iPhone device settings.)

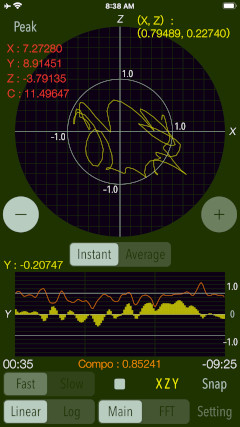

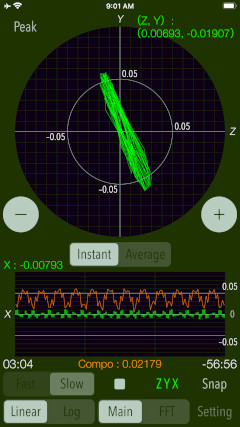

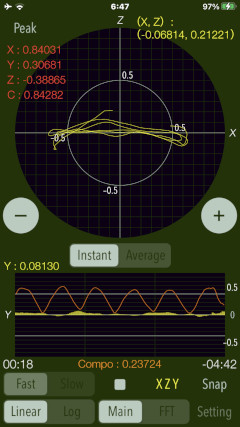

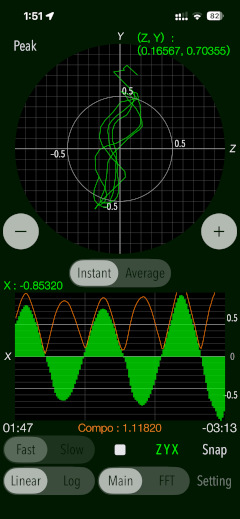

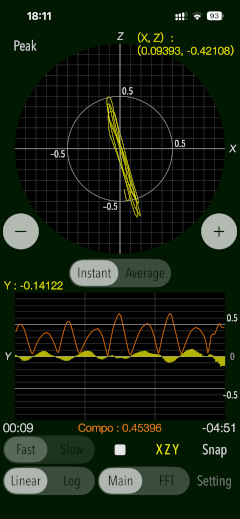

Axis display setting (Axis)

During measurement operation, tap the "Axis" button to change the axis direction in the graph display. Each time you tap the "Axis" button, the axis direction will be switched sequentially, so please match the axis direction you want to display. Note that the "Axis" button is not displayed in logarithmic scale view.


vs_top vs_top vs_top vslite_main_1


You can change to logarithmic scale view by tapping "LogScl" button.

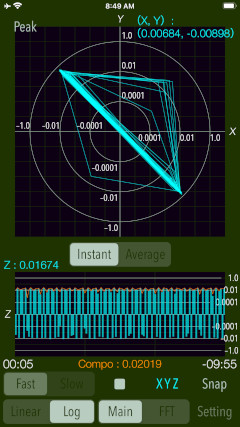

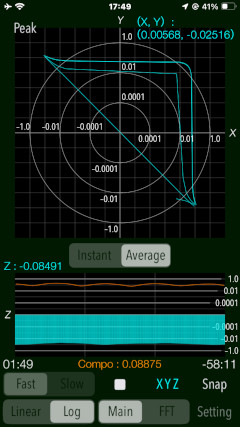

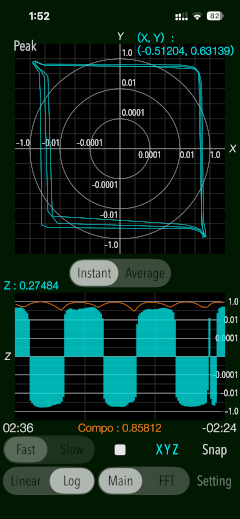

Logarithmic scale display (LogScl)

This is a display mode to detect minute vibration.

In normal use, the graph does not become stable because the vibration does not converge. Graphing extremely small numbers can be affected by errors due to noise and temperature in the operating environment or time variations in sensor calibration.

In addition, if you move the terminal in the middle of measurement, the sensor correction may be wrong, and the acceleration value may converge to a fixed amount, so it is recommended to stop the measurement and re-measure.


vs_logscl


The following functions are applied in common regardless of the selected operation mode.


3-axis composite acceleration : COMPO

By tapping "comp." button, 3-axis composite acceleration is displayed in orange line.


Sampling period (Configuration measurement speed) : FAST/SLOW

By tapping "slow" or "fast" button, the sampling period of the acceleration sensor is specified. Please set it in accordance with the occurrence tendency and type of the measurement source. It is not possible to switch the sampling period during the measurement. In addition, the sampling period may be influenced by the hardware environment and the operating environment of the iOS system.

- [FAST] : 100Hz (default)

- [SLOW] : 40Hz


Range of measurement display : + / -

By tapping the button ([+]or[-]), you can specify the display range of the vibration level measurement. Please be set according to the magnitude of the acceleration of the measurement source.

- [+]: increase the display range.

- [-]: decrease the display range.

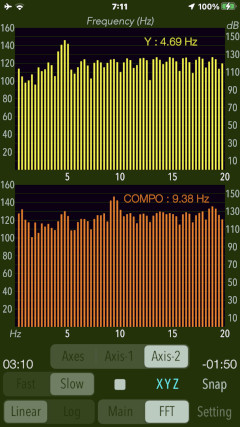

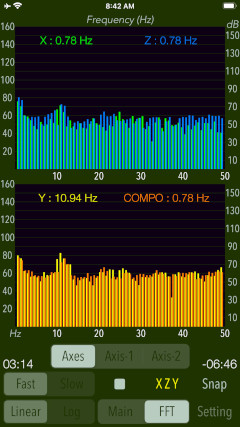

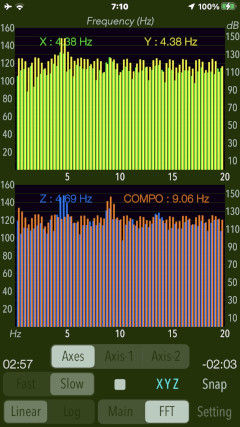

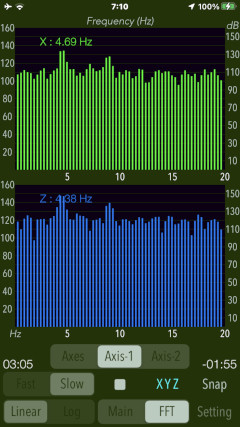

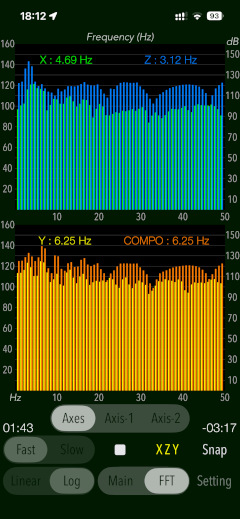

FREQ mode : FFT Analyzer

This mode displays the frequency analysis results of the Fast Fourier Transform (FFT). FFT analyzer performs frequency spectrum analysis using the 3-axis acceleration (X, Y, Z) and 3-axis composite acceleration (COMPO) as input signals, and is displayed them in real time.

By tapping START button to start the FFT Analysis, and it then stop by tapping STOP button. Measurement parameter settings in MAIN mode will be reflected directly.


ss_vs_fft ss_vs_fft_2

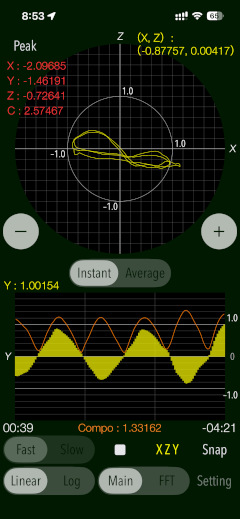

Measurement Value Display : PEAK

By tapping "Peak" button, you can control whether or not to display the measured values for each measurement display graph. It can be set in MAIN mode.


ss_vs_val ss_vslite_val

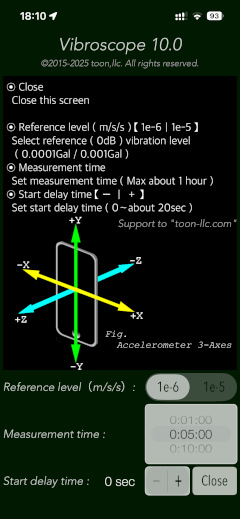

Common settings : SETTING

By tapping "Setting" button, it displays this common settings for each operational mode. "Vibroscope Lite" does not have this function.


ss_vs_setting

Measurement Time

This is a timer setting for vibration level measurement. Measurement time can be set from 30 seconds up to 1 hour. "Vibroscope Lite" does not have a timer setting, it automatically stops in 20 seconds.

- Measurement time : 30 seconds, 1 minute, 5 minutes, 10 minutes, 15 minutes, 20 minutes, 30 minutes, 45 minutes, 60 minutes

Start delay time

It can specify the delay time from when you tap the start button to the actual measurement start. Time setting is up to 20 seconds. You can avoid the influence of tap vibration of start button. In "Vibroscope Lite", the start delay time is set to 3 seconds.

- Start delay time : 0 - 20 seconds

Reference level

It can select the reference level [0 dB] of vibration acceleration from the following reference value in FREQ mode.

- Reference Level[1] : 1e-6 [m/s2]

- Reference Level[2] : 1e-5 [m/s2]

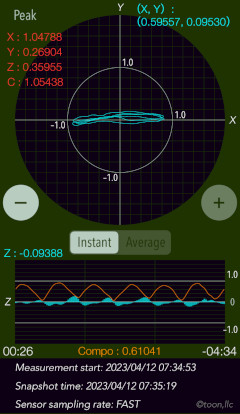

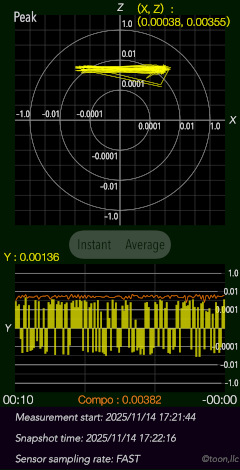

Snapshot : SNAP

By tapping "Snap" button, you can capture the measured screen image to Camera roll. It will be saved in PNG format.

In addition, the saved the image will be inserted time stamp (date and measured time data).

At the first time, the confirmation of access to the camera roll is required once from iOS system when you press "Snap" button.

"Vibroscope Lite" does not have this function.


vs_snap

Data Logging

Measurement data and time information will be saved as a LOG file. LOG file can be external output using the iPhone file sharing function, so it allows you to data analysis offline. If the location information display is permitted, the location information at the start of measurement will be stored in the logging data. "Vibroscope Lite" does not have this function.


The LOG file is output in text format with the following data strings:

Logging data strings : "Date and time", "X axis acceleration", "Y axis acceleration", "Z axis acceleration"
Acceleration data unit : m/s2

For the information on file sharing between iPhone and iTunes, please refer to the following Apple support site.

"File Sharing on iPhone : Info by Apple support"

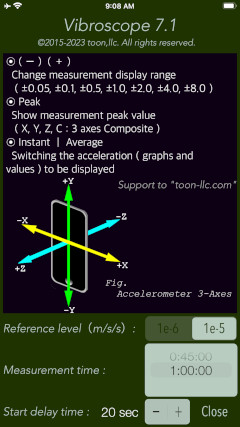

Product Information:Info

By tapping "Setting" button, it will display the product information and the screen description. In "Vibroscope Lite", then tap "Info" button. The screen description can be scrolled up and down.


ss_vs_setting ss_vs_info

Release Information

# Vibroscope
Version 4.3 was released on April 16, 2021. UTC
Version 4.2 was released on February 11, 2021. UTC
Version 4.1 was released on November 6, 2020. UTC
Version 4.0 was released on April 21, 2020. UTC
Version 3.1 was released on June 20, 2019. UTC
Version 3.0 was released on December 28, 2018. UTC
Version 2.0 was released on February 21, 2018. UTC
Version 1.1 was released on May 5, 2016. UTC
Version 1.0 was released on September 22, 2015. UTC

# Vibroscope Lite
Version 4.2 was released on March 22, 2021. UTC
Version 4.1 was released on September 9, 2020. UTC
Version 4.0 was released on April 24, 2020. UTC
Version 3.1 was released on June 29, 2019. UTC
Version 3.0 was released on December 28, 2018. UTC
Version 2.0 was released on February 22, 2018. UTC
Version 1.2 was released on June 10, 2016. UTC
Version 1.1 was released on September 16, 2015. UTC
Version 1.0 was released on September 5, 2015. UTC

Precautions

At the time of the first access to Photos after installing the app, you will be asked authorization to access them by the iOS system. If you have not enabled this setting, the app can not access them by privacy restrictions of the iOS system. Please enable the access permission on the iOS setting, "Settings > Privacy > Photos".
In addition, in order to to continue the measuring operation in the background, "Settings > General > Auto-Lock" must be set to "Never". Please set this setting if you want to use the data logging.
The measurement display is automatically set by detecting the orientation of the device at the start of measurement. In order to display in the correct axis direction, you need to unlock "Portrait orientation lock" in the Control Center settings of your iPhone device.

Note

The xyz axis of the measurement display is based on the spatial axis of the acceleration sensor installed in the iPhone. In this application, 2 axis display coordinates and time axis coordinates are automatically determined by the terminal state.

- State with terminal vertically: 2 axis graph x - z, time axis y

- State with terminal in landscape orientation: 2 axis graph y - z, time axis x

- State with terminal liquid crystal facing the sky: 2 axis graph x - y, time axis z

Regarding the log data, since it records the data of the acceleration axis xyz itself, it is not related to terminal orientation.
With respect to measurable frequencies, the data sampling period from the acceleration sensor is Fast 100 Hz, Slow 40 Hz. It may be affected by the hardware environment and operating environment of the iOS system. In the FFT display, the frequency up to 1/2 of the sampling period is analyzed and displayed.
This application is not recommended for official measurement because there are variations and accuracy errors for each terminal and sensor. Also, if the vibration is large, errors may accumulate and proper display may not be possible. Therefore, please do not guarantee strict measurements, please use as an auxiliary tool to measure daily vibration level.
Please do not use while driving or operating the machine.
When measuring for a long time, battery consumption may be large.
The logarithmic scale graph is displayed very small numerical value, so it may be influenced by noise and temperature error in your environment or time fluctuation of sensor calibration.
